Belt Roller Assembly | Spring 2025
Solution Methods
Project Description
Designed and completed belt roller assembly and produced a full manufacturing drawing package. This includes exploded assembly drawings, detailed part drawings, tolerances and geometric dimensioning. This project emphasized correct component interfacing, manufacturability and industry standard documentation practices.
Modeled all components and full assembly in Fusion 360
Created exploded assembly drawings with item balloons and parts list
Generated detailed part drawings for base, brackets, axle, roller, bushings, and fasteners
Applied metric fits to ensure correct alignment and rotation
Defined general and feature-specific tolerances per drawing standards
Implemented GD&T to control concentricity, perpendicularity, and surface finish
Manufacturing Considerations
Metric fits selected to ensure proper part alignment and rotation
Concentricity applied between bushings and shafts to maintain consistent roller motion
Perpendicularity and surface finish specified on mounting faces to support accurate assembly
Results
Completed a full 7-sheet manufacturing drawing package
All components correctly dimensioned and assembled in the final design
Proper fit and alignment achieved through appropriate metric fit selection
Project met all design, documentation, and manufacturability objectives
Received a final grade of A

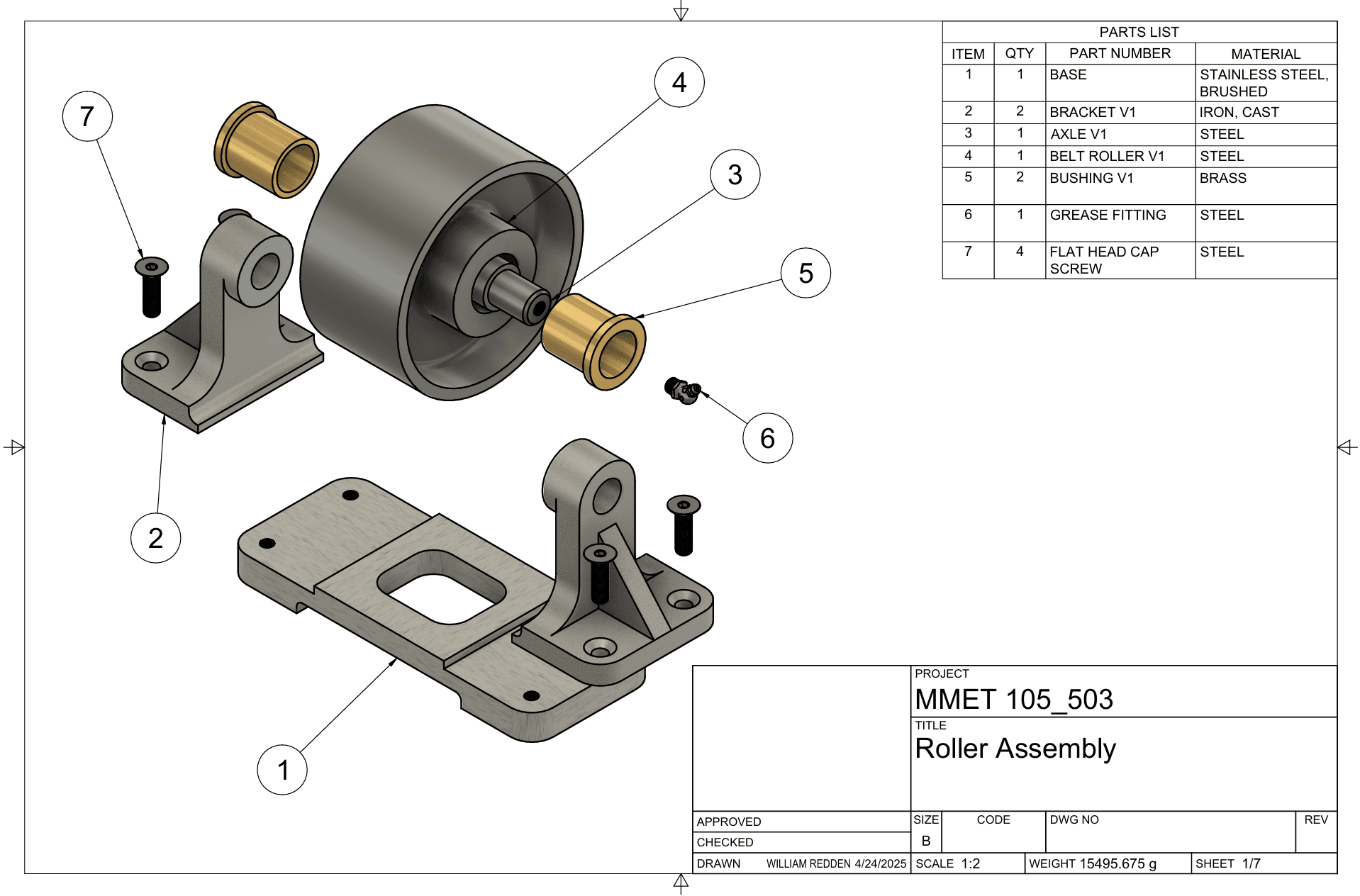

Exploded View

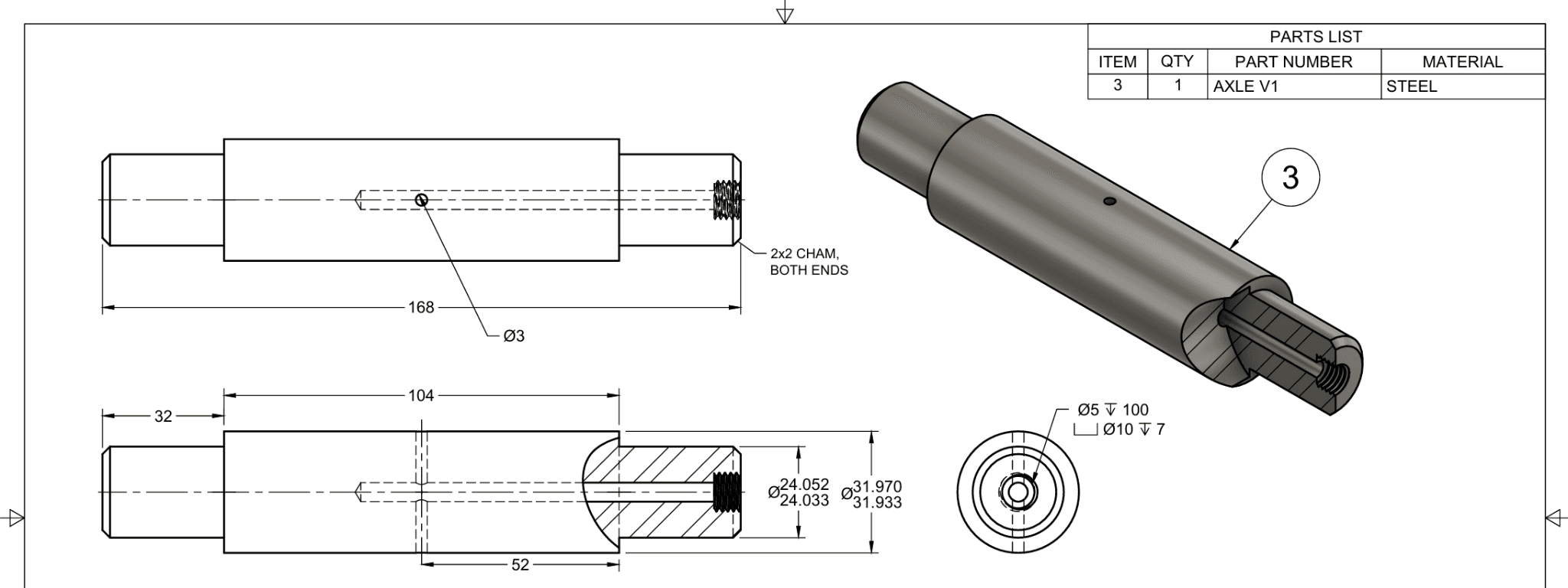

Axle Manufacturing Drawing

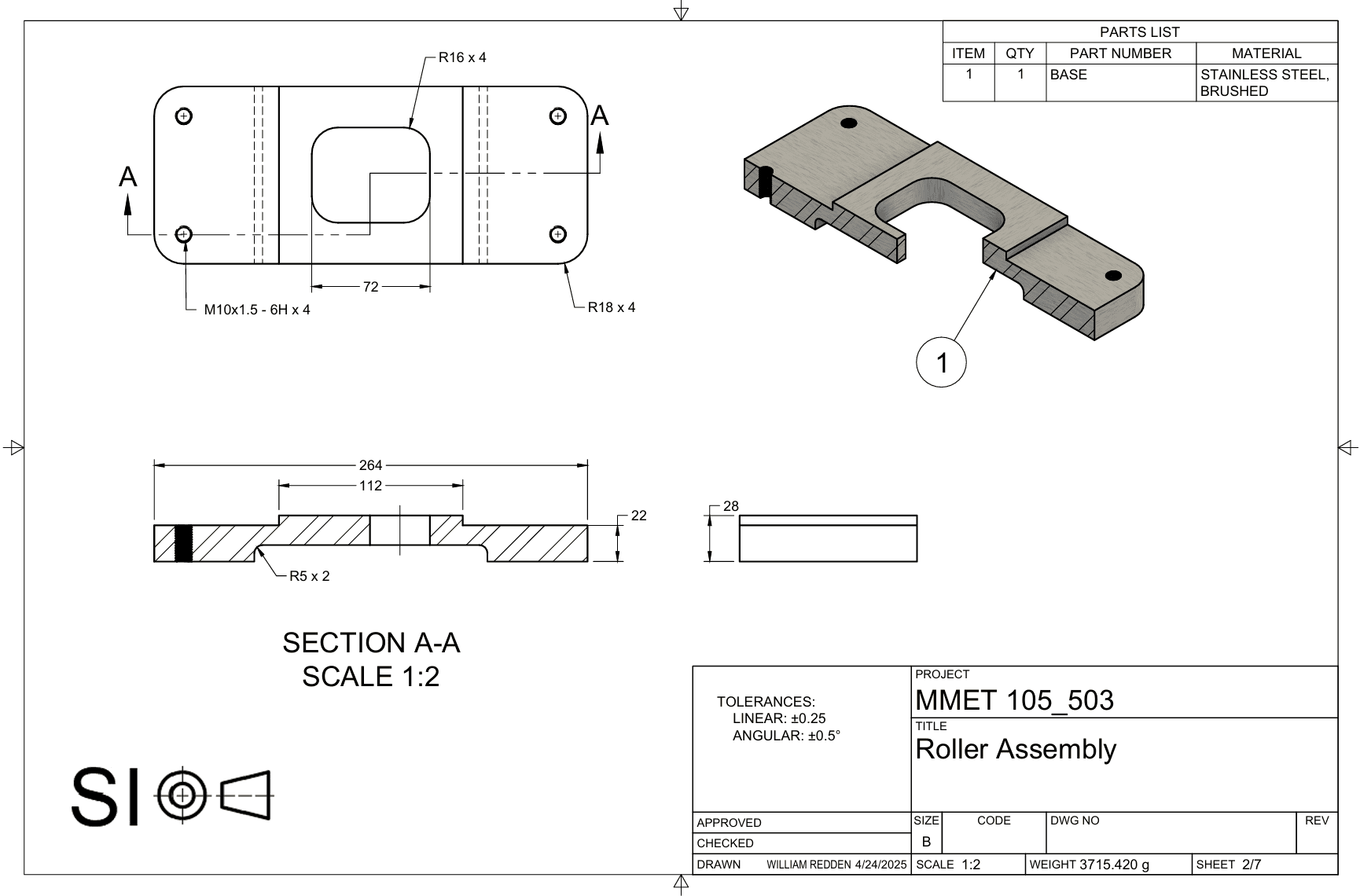

Base Manufacturing Drawing

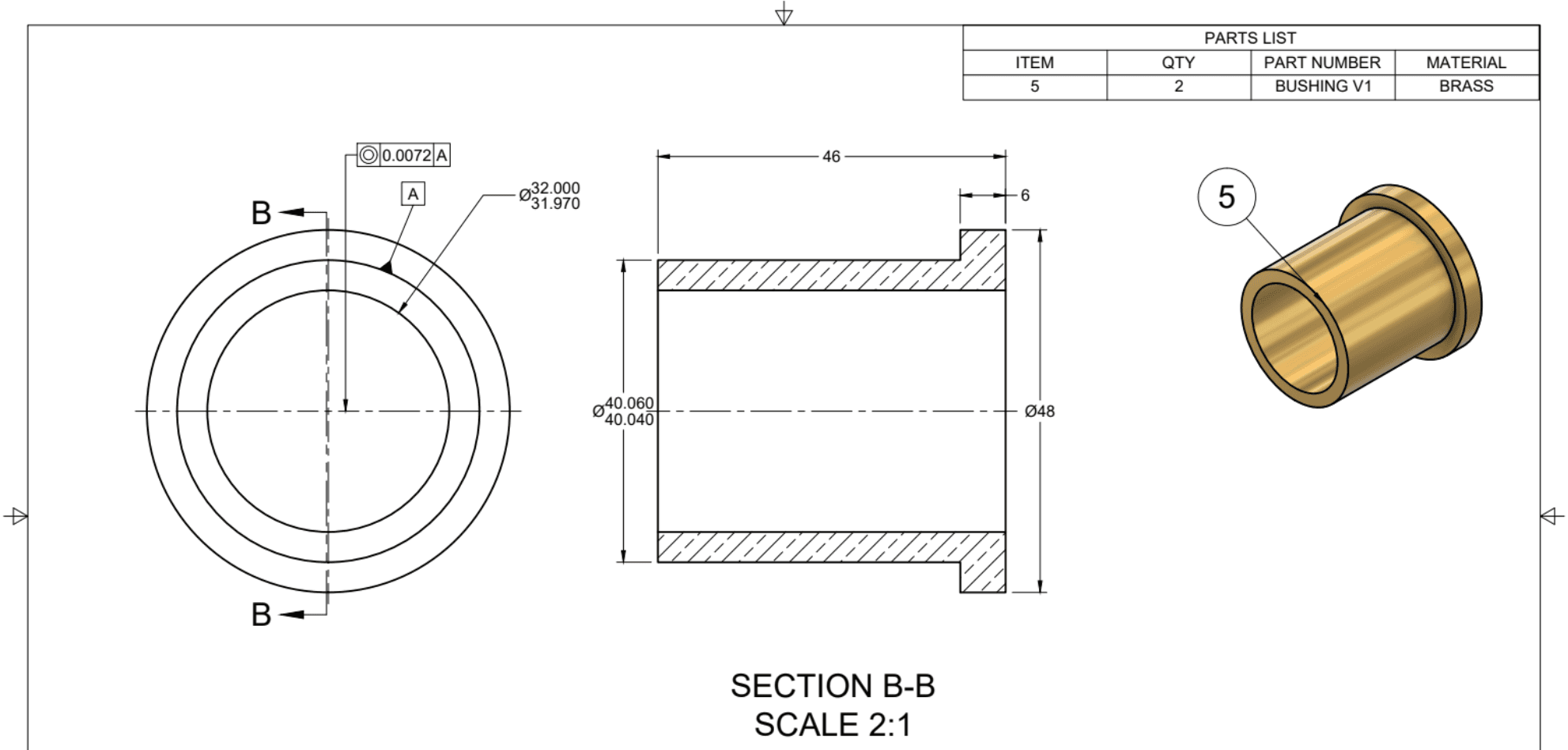

Bushing Manufacturing Drawing
